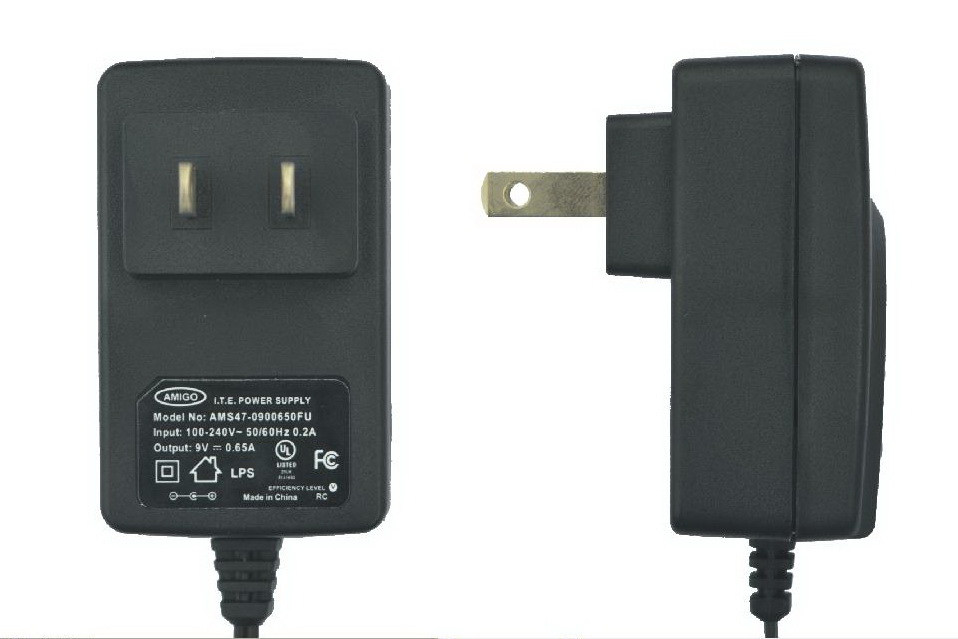

 AMS47 Series

l  特性 / Features:

n   符合能效5等級要求

     CEC Level V compliance

n   USB-A接頭或出線式結構

     Both USB-A and Cord connection available

proimages/2015目錄R3圖檔/LV5.png

proimages/2015目錄R3圖檔/6W47.jpg



















輸入電壓範圍

Input voltage range

AC 90V ~ 264V 47-63Hz

輸出電壓範圍

Output voltage range

3.3 ~15 VDC

最大輸出功率/電流

Max. Output Watt/A

6W / 1.2A Max.

能效等級

Efficiency level

Level V    Stand by consumption < 0.3W

AC插頭型式

AC Plug configuration

Wall mount horizontal plug in (正插式)

認證標準

(詳細認證安規見下表)

Applicable standard

(See detailed approvals as below)

þUL/IEC/EN/NZS 60950-1   þGB4943

£IEC60065

外殼尺寸(不含AC Plug)

Case size (exclude AC Plug)

65.8 x 40 x 29 mm (L x W x H)

主要應用產品

Main applications

VoIP, Router, Mobile device, Networking products

Safety

Output V & I Range

Max. Output Watts

Note

UL / cUL / GS / CB / CE /CCC /SAA

3.3 ~15 VDC  0.1 ~ 1.2A

V x A 6W

V&I may be specified

PSE

15V  Various O/P current

>10VA ~20VA (*)

* PSE requires I/P VA

KC

5.0 ~12.5 VDC  0.1 ~ 1.2A

V x A 6W

V&I may be specified
