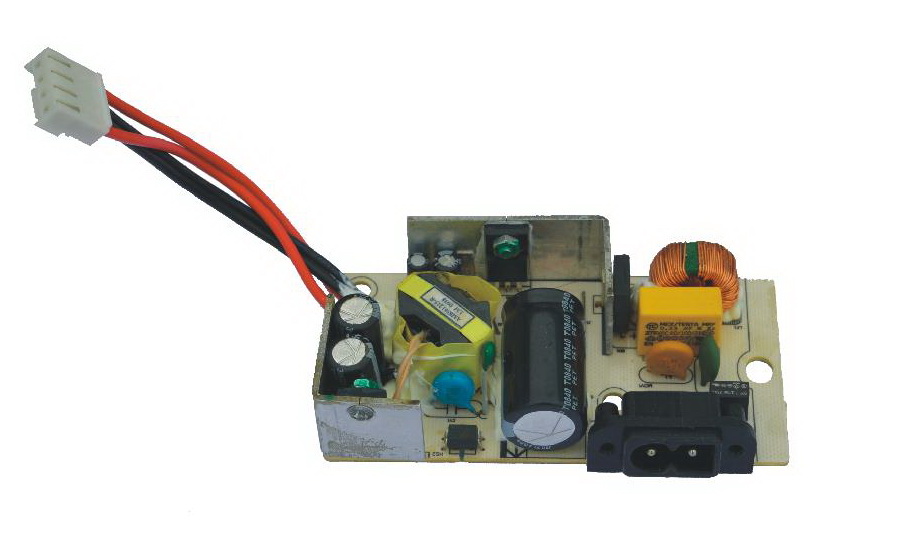

 AMS56 Series

l  特性 / Features:

n   符合能效5等級要求 / CEC Level V compliance

n   C8 (2 pin)插頭輸入, 4個固定孔 / C8 (2 pin) socket input, 4 fixing holes

proimages/2015目錄R3圖檔/36W56.jpg









 proimages/2015目錄R3圖檔/LV5.png





輸入電壓範圍

Input voltage range

AC 90V ~ 264V 47-63Hz

輸出電壓範圍

Output voltage range

12.0 ~ 15.0 VDC

最大輸出功率/電流

Max. Output Watt/A

36W / 3.0A Max.

能效等級

Efficiency level

Level V    Stand by consumption < 0.3W

AC插頭型式

AC Plug configuration

C8 socket (2 pin) Socket can be lead out or built in board

認證標準

(詳細認證安規見下表)

Applicable standard

(See detailed approvals as below)

þUL60950-1   £IEC60950-1   £CNS13438

£IEC60065

PCB尺寸

PCB size

99 x 50 x 21 mm (L x W x H)

主要應用產品

Main applications

Cable modem, Set top box

Safety

Output V & I Range

Max. Output Watts

Note

UL/cUL

(Component Recognized)

12.0 VDC  0 ~3.0A

V x A 36W



12.1 ~ 15.0 VDC  0 ~2.4A

V x A 36W
