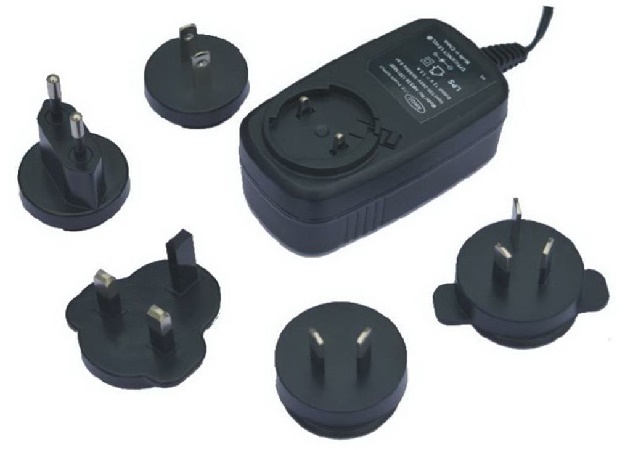

 AMS168 Series

l  特性 / Features:

n  符合能效6等級要求

    DoE Level VI compliance

n  可換式AC插頭設計

    Interchangeable AC Plug design

proimages/2015目錄R3圖檔/LV6.png

proimages/2017目錄R7圖檔/6W168.jpg

輸入電壓範圍

Input voltage range

AC 90V ~ 264V 47-63Hz

輸出電壓範圍

Output voltage range

7.5 ~12.0 VDC

最大輸出功率/電流

Max. Output Watt/A

6W / 0.8A Max.

能效等級

Efficiency level

Level VI (CoC Tier 2) Stand by consumption < 0.075W

AC插頭型式

AC Plug configuration

Wall mount horizontal plug in (正插式)

認證標準

(詳細認證安規見下表)

Applicable standard

(See detailed approvals as below)

þIEC/EN 60950-1

外殼尺寸(不含AC Plug)

Case size (exclude AC Plug)

75.7 x 47.25 x 33.0 mm (L x W x H)

主要應用產品

Main applications

IP Camera, Router, STB, Networking products

Safety

Output V & I Range

Max. Output Watts

Note

CB / CE

7.5 ~ 12.0 VDC  0.01 ~ 0.8A

V x A  6W

V&I may be specified

PSE

15V  Various O/P current

>10VA ~ 30VA (*)

* PSE requires I/P VA
