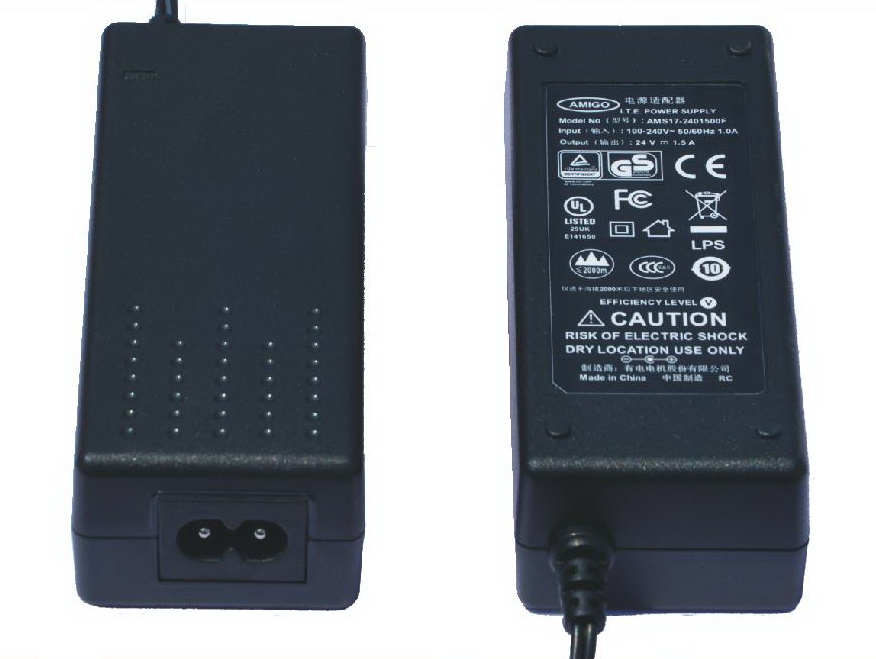

36W Desk-Top series (Level V)
AMS17 Series
l 特性 / Features:
n 符合能效5等級要求
CEC Level V compliance
n 桌上型LED指示燈設 計
Desk Top design with LED indicator
|
輸入電壓範圍 |
Input voltage range |
AC 90V ~ 264V 47-63Hz |
|
|
輸出電壓範圍 |
Output voltage range |
9 ~ 24 VDC |
|
|
最大輸出功率/電流 |
Max. Output Watt/A |
36W / 3.5A Max. |
|
|
能效等級 |
Efficiency level |
Level V Stand by consumption < 0.3W |
|
|
AC插頭型式 |
AC Plug configuration |
Desk Top with IEC socket (Class 2: 2 pin only) |
|
|
認證標準 (詳細認證安規見下表) |
Applicable standard (See detailed approvals as below) |
þUL/NZS 60950-1 þGB4943 £CNS13438 £IEC60065 (CB only) |
|
|
外殼尺寸(不含AC Plug) |
Case size (exclude AC Plug) |
110 x 45 x 32 mm (L x W x H) |
|
|
主要應用產品 |
Main applications |
STB, Networking products, IT equipment |
|
|
Safety |
Output V & I Range |
Max. Output Watts |
Note |
|
UL / cUL / CCC |
9.0 ~24.0 VDC 0.1 ~ 3.5A |
V x A ≦ 36W |
V&I may be specified |
|
PSE |
≦ 15V Various O/P current |
>30VA ~≦80VA (*) |
* PSE requires I/P VA |
