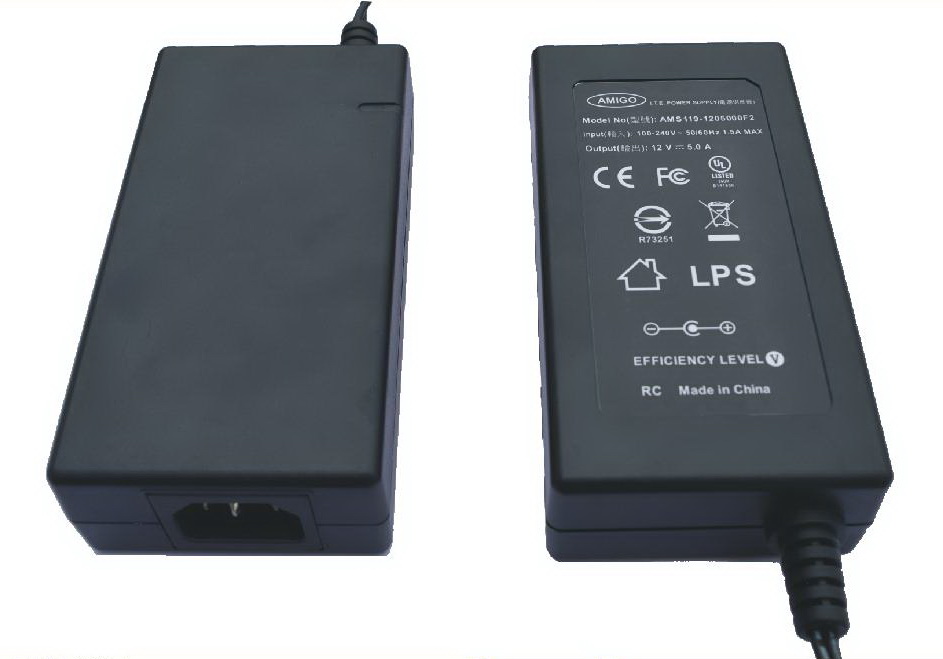

60W Desk-Top series (Level VI)
AMS119 Series
l 特性 / Features:
n 符合能效6等級要求
CEC Level VI compliance
n 桌上型Class I結構設計
Desk Top design, Class I construction
|
輸入電壓範圍 |
Input voltage range |
AC 90V ~ 264V 47-63Hz |
|
|
輸出電壓範圍 |
Output voltage range |
12.0 VDC |
|
|
最大輸出功率/電流 |
Max. Output Watt/A |
60W / 5A Max. |
|
|
能效等級 |
Efficiency level |
Level VI (CoC Tier 2) Stand by consumption < 0.075W |
|
|
AC插頭型式 |
AC Plug configuration |
Desk Top with IEC socket (Class 1: 3 pin only) |
|
|
認證標準 (詳細認證安規見下表) |
Applicable standard (See detailed approvals as below) |
þUL/IEC/EN/NZS 60950-1 þGB4943 þCNS13438 £IEC60065 |
|
|
外殼尺寸(不含AC Plug) |
Case size (exclude AC Plug) |
126 x 65 x 32.5 mm (L x W x H) |
|
|
主要應用產品 |
Main applications |
Hub Switch, Router, STB, Networking products |
|
|
Safety |
Output V & I Range |
Max. Output Watts |
Note |
|
UL / cUL / BSMI / GS / CB / CE / SAA / EAC / NOM / S-MARK / KC / CCC |
12.0 VDC 0.1 ~ 5.0A |
V x A ≦60W |
V&I may be specified |
|
BIS |
12.0 VDC 5.0A |
V x A ≦60W |
V&I may be specified |
|
PSE |
≦ 15V Various O/P current |
>100VA ~≦200VA (*) |
* PSE requires I/P VA |
