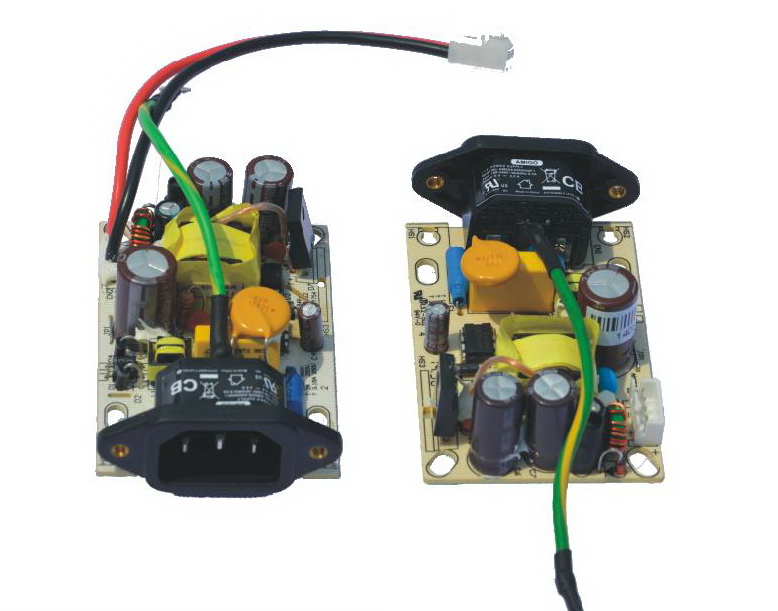

10W series (Level V)
AMS59 Series
l 特性 / Features:
n 符合能效5等級要求 / CEC Level V compliance
n C14 (3 pin)插頭輸入, 4個固定孔 / C14 (3 pin) socket input, 4 fixing holes
|
輸入電壓範圍 |
Input voltage range |
AC 90V ~ 264V 47-63Hz |
|
|
輸出電壓範圍 |
Output voltage range |
3.3 / 5.0 / 7.5 VDC |
|
|
最大輸出功率/電流 |
Max. Output Watt/A |
10W / 2.5A Max. |
|
|
能效等級 |
Efficiency level |
Level V Stand by consumption < 0.3W |
|
|
AC插頭型式 |
AC Plug configuration |
IEC 320 C14 socket (3 pin) with grounding wire |
|
|
認證標準 (詳細認證安規見下表) |
Applicable standard (See detailed approvals as below) |
þUL60950-1 þIEC60950-1 £CNS13438 £IEC60065 |
|
|
PCB尺寸 |
PCB size |
79.5 x50.2 x 21.5 mm (L x W x H) |
|
|
主要應用產品 |
Main applications |
Hub switch, Set top box |
|
|
Safety |
Output V & I Range |
Max. Output Watts |
Note |
|
UL/cUL/CB (Component Recognized) |
3.3VDC 0 ~2.5A |
V x A ≦ 8.25W |
|
|
5.0VDC 0 ~2.0A |
V x A ≦ 10W |
|
|
|
7.5VDC 0 ~1.3A |
V x A ≦ 9.75W |
|
|
