 AMS135 Series

l  特性 / Features:

n 符合能效6等級要求

   DoE Level VI compliance

n USB-A接頭或出線式結構

   Both USB-A and Cord connection available

proimages/2015目錄R3圖檔/LV6.png

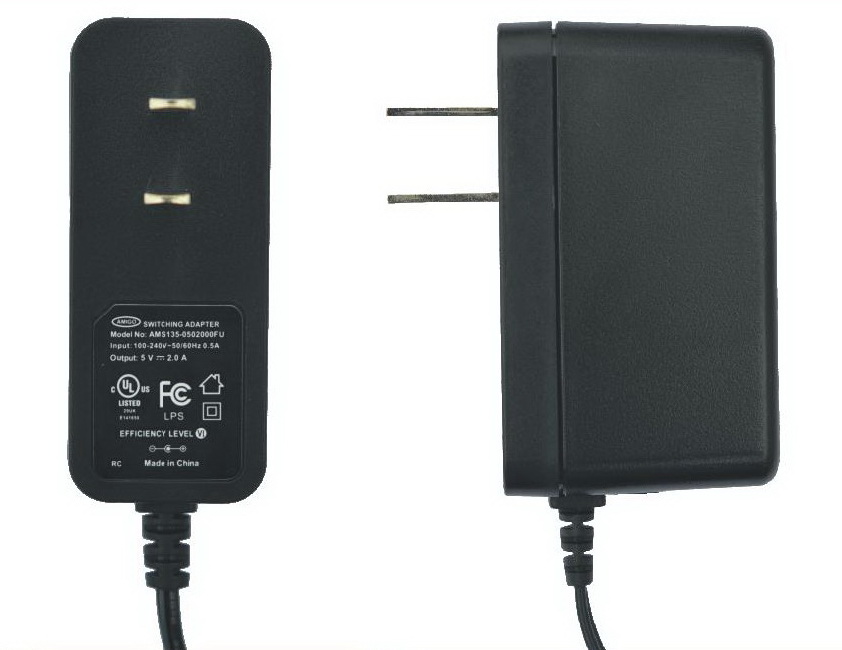

proimages/2015目錄R3圖檔/12W135.jpg





輸入電壓範圍

Input voltage range

AC 90V ~ 264V 47-63Hz

輸出電壓範圍

Output voltage range

5.0 ~13.8 VDC

最大輸出功率/電流

Max. Output Watt/A

15W / 2A Max.

能效等級

Efficiency level

Level VI (CoC Tier 2) Stand by consumption < 0.075W

AC插頭型式

AC Plug configuration

Wall mount front side plug in (側插式)

認證標準

(詳細認證安規見下表)

Applicable standard

(See detailed approvals as below)

þUL/IEC/EN/NZS 60950-1   þGB4943   þCNS13438

þIEC60065

外殼尺寸(不含AC Plug)

Case size (exclude AC Plug)

70 x 29 x40 mm (L x W x H)

主要應用產品

Main applications

Audio device, Mobile device, Networking products

Safety

Output V & I Range

Max. Output Watts

Note

BSMI /GS / CB / CCC /SAA

5.0 ~ 13.8 VDC  0.01 ~ 2.0A

V x A 15W

V&I may be specified

UL / cUL / CE

3.0 ~ 20 VDC  0.01 ~ 2.0A

V x A 15W

V&I may be specified

PSE

15V  Various O/P current

>10VA ~30VA (*)

* PSE requires I/P VA
