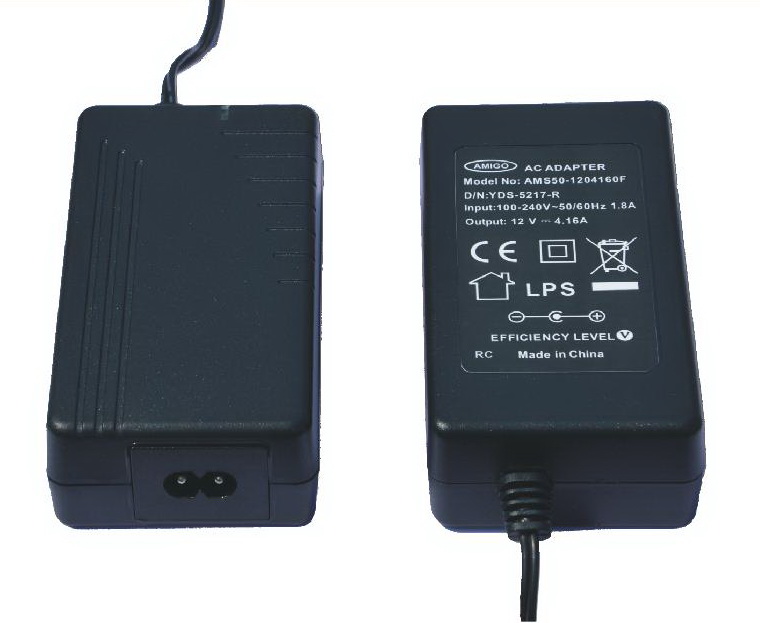

50W Desk-Top series (Level V)
AMS50 Series
l 特性 / Features:
n 符合能效5等級要求
CEC Level V compliance
n 桌上型Class II結構設計
Desk Top design, Class II construction
|
輸入電壓範圍 |
Input voltage range |
AC 90V ~ 264V 47-63Hz |
|
|
輸出電壓範圍 |
Output voltage range |
12.0 VDC |
|
|
最大輸出功率/電流 |
Max. Output Watt/A |
50W / 4.16A Max. |
|
|
能效等級 |
Efficiency level |
Level V Stand by consumption < 0.3W |
|
|
AC插頭型式 |
AC Plug configuration |
Desk Top with IEC socket (Class 2: 2 pin only) |
|
|
認證標準 (詳細認證安規見下表) |
Applicable standard (See detailed approvals as below) |
£IEC/EN 60950-1 £GB4943 £CNS13438 þIEC60065 |
|
|
外殼尺寸(不含AC Plug) |
Case size (exclude AC Plug) |
118 x 62 x 33.4 mm (L x W x H) |
|
|
主要應用產品 |
Main applications |
Hub Switch, Router, STB, Networking products |
|
|
Safety |
Output V & I Range |
Max. Output Watts |
Note |
|
CB/CE |
12.0 VDC 0.1 ~ 4.16A |
V x A ≦ 50W |
V&I may be specified |
