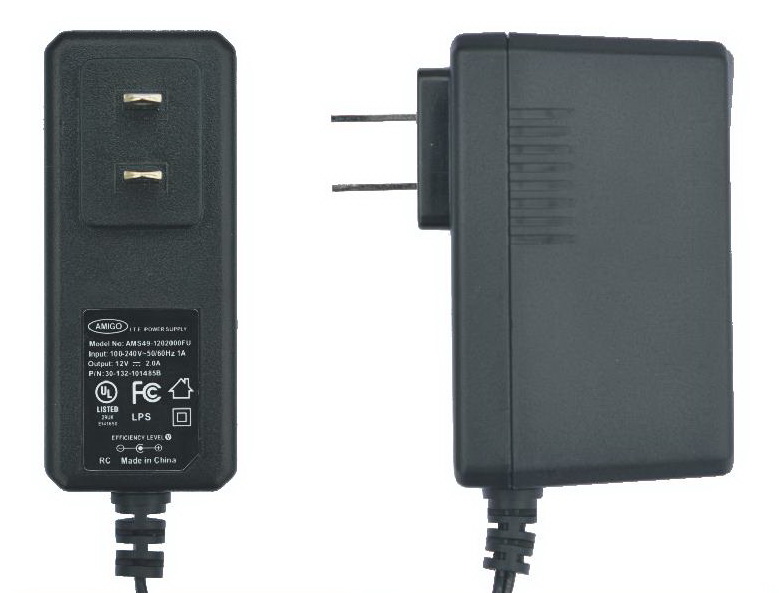

AMS49 Series

l  特性 / Features:

n   符合能效5等級要求


CEC Level V compliance

n   能對應無Y電容設計


No-Y Cap. design available

proimages/2015目錄R3圖檔/LV5.png

proimages/2015目錄R3圖檔/30W49.jpg





輸入電壓範圍

Input voltage range

AC 90V ~ 264V 47-63Hz

輸出電壓範圍

Output voltage range

12.0 VDC

最大輸出功率/電流

Max. Output Watt/A

30W / 2.5A Max.

能效等級

Efficiency level

Level V    Stand by consumption < 0.3W

AC插頭型式

AC Plug configuration

Wall mount vertical plug in (側插式)

認證標準

(詳細認證安規見下表)

Applicable standard

(See detailed approvals as below)

þUL/IEC/EN/NZS 60950-1   £GB4943   £CNS13438

£IEC60065

外殼尺寸(不含AC Plug)

Case size (exclude AC Plug)

82 x34X52 mm (L x W x H)

主要應用產品

Main applications

VoIP, Router, STB, Networking products

Safety

Output V & I Range

Max. Output Watts

Note

UL / cUL / GS / CB / CE /SAA

12 VDC  0.1 ~ 2.5A

V x A 30W

V&I may be specified

IRAM

12 VDC  0.1 ~ 2.5A

V x A 30W

V&I may be specified

PSE

15V  Various O/P current

>20VA ~80VA (*)

* PSE requires I/P VA
